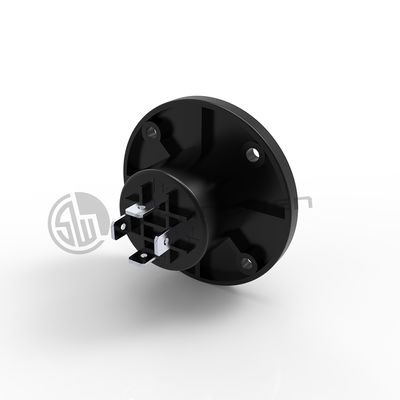

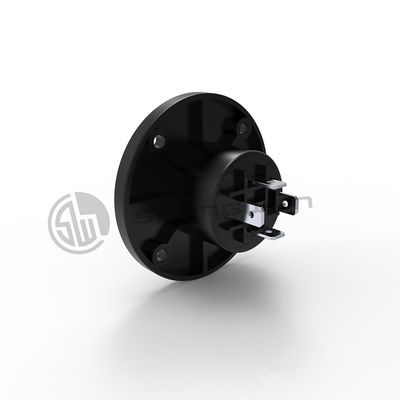

4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins

उत्पत्ति के प्लेस ग्वांगडोंग, चीन
ब्रांड नाम SHANGWEN
मॉडल संख्या SW4SM-2Z-Y
न्यूनतम आदेश मात्रा 10 टुकड़े
मूल्य $0.64 / piece

निःशुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।

WhatsApp:0086 18588475571

वीचैट: 0086 18588475571

स्काइप: sales10@aixton.com

यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।

x
उत्पाद विवरण
आवेदन ऑडियो और वीडियो वर्तमान मूल्यांकित 25 ए
लिंग पुरुष आकार गोल
प्रकार ध्वनि-विस्तारक यंत्र औद्योगिक इलेक्ट्रॉनिक्स सामान
प्रमुखता देना

Round Shape Loudspeaker Connector

,

Latch Lock Loudspeaker Connector

,

Engineering Plastic Loudspeaker Connector

एक संदेश छोड़ें
उत्पाद विवरण
Products Description
4Pin Loudspeaker chassis -engineering plastics material

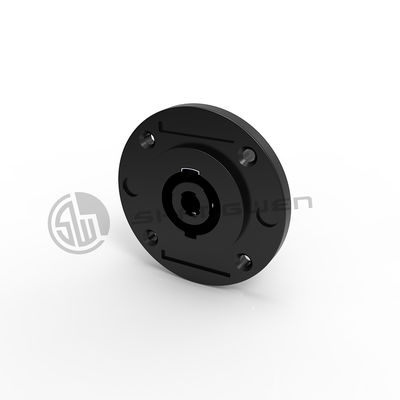

4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins 0
Model:SWM4S-2ZY
Precise keyway for secure mating
Metal insert in locking area
Glass reinforced materials make it extremely robust and dependable
Accurate twist lock latching system Airtight design - optimized for speaker applications

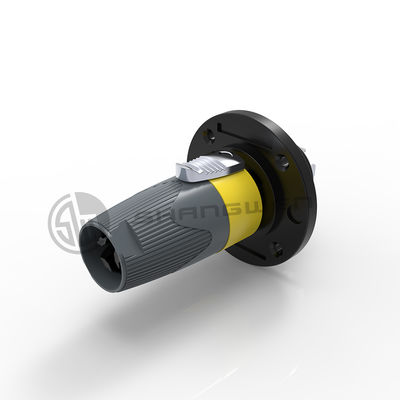

4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins 2

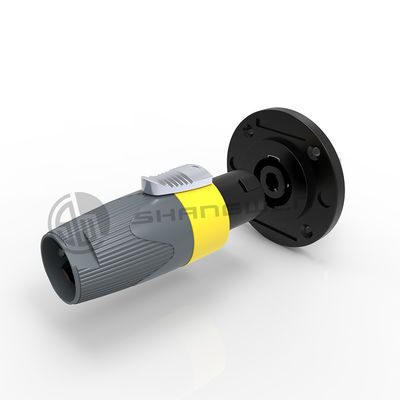

4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins 4
1.Product parameters
Connection Type
Speaker
Gender
Male
2.Electrical parameters
Contact resistance
<2mΩ
Dielectric strength
2.8kVdc
Insulation resistance
> 1.0GΩ (initial)
Rated current per contact
25A
Rated voltage
250 V ac
3.Mechanical parameters
Service life
>5000 mating cycles
Chassis shape
Circular
Layout
four thru holes
Locking device
Latch lock
4.Material and environmental parameters
Contacts
Cu alloy
Contact plating
Ag
Shell
Polyamide (PA 6 30 % GR)
Flame-retardant grade
94 V-0
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins 6
6.Assembly reference
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins 8
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins 10
Application area
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins 12
Company Information
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins 14
Patent & Certification
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins 16
Exhibition activities
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins 18
Packaging reference
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins 20
Payment and logistics
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins 22
FAQ
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins 24
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
